HS-380 type helium mass spectrometer leak detector

The HS-380 type helium mass spectrometer leak detector is a product that combines technology and art. The design is beautiful, atmospheric, beautiful and practical. Super-long warranty for core components, users can use with confidence.

Use scenarios:

Vacuum equipment manufacturing: Ensuring the equipment does not have leaks.

Chemical labs: Checking for leaks in equipment such as chemical reactors or vacuum dryers, ensuring the safety of the experiment.

Aerospace industry: Checking for leaks in spacecraft and rocket fuel systems and propulsion systems.

Pharmaceutical industry: Checking for leaks in pharmaceutical equipment, ensuring the quality and safety of drugs.

Electronics industry: Checking for leaks in electronic components such as vacuum tubes, semiconductor devices, and display devices.

Automotive manufacturing: Checking for leaks in automobile engines, brake systems, and air conditioning systems.

Medical equipment: Checking for leaks in medical equipment (such as dialysis machines, respirators, etc.), ensuring the safety and effectiveness of medical equipment.


Applications

Industries: Vacuum furnaces, coating systems, pressure vessels, ultra-high vacuum projects;
High-energy physics: Accelerators, beamlines, synchrotron light sources;
Research fields: Space simulation systems, test devices, microelectronics, surface analysis systems;
Semiconductors and electronics: Process equipment, gas routes, gas transmission equipment, electronic components, packaging;
Automotive refrigeration: Evaporators, air conditioners, pipelines;
Nuclear industry: Nuclear power valves, nuclear containers;
Aerospace: Space simulators, spacecraft, pipelines;
Power plants: Pipelines, steam generators, heat exchangers, condensers

Features

-- Standard desktop chassis, atmospheric design, beautiful and practical;
-- Wide detection range, spanning 10 orders of magnitude;
-- The leak detection port is highly resistant to pressure and adaptable to a wide voltage range, allowing for the detection of large and small leaks, making it more convenient to use;
-- One-click zeroing of the leak detection status;
-- Full liquid crystal touch color screen, convenient operation;
-- Chinese and English menu interface

  • I. Main technical indicators


    Minimum detectable leakage rate: 5×10-13Pa·m3/s

    Leakage display range: 1×10-2—1×10-13Pa·m3/s

    Start-up time: ≤3min Response time: ≤0.5s

    Maximum pressure of the leak detection port: 1500Pa

    Ultimate pressure: 5×10-4Pa

    Mechanical pump pumping speed: 3L/s

    Power requirements: 220V, 50Hz, single phase, 10A Working environment: 5-45℃

    Relative humidity: ≤80% Dimensions: 550 (W)×420 (D)×700 (H) Weight: 60kg


    II. Main configuration


    Imported leak detector special molecular pump Youcheng mechanical pump Helium permeation type calibration leak hole American AD amplifier Mass spectrometry dedicated module Liquid crystal touch color screen High performance wide voltage master control board

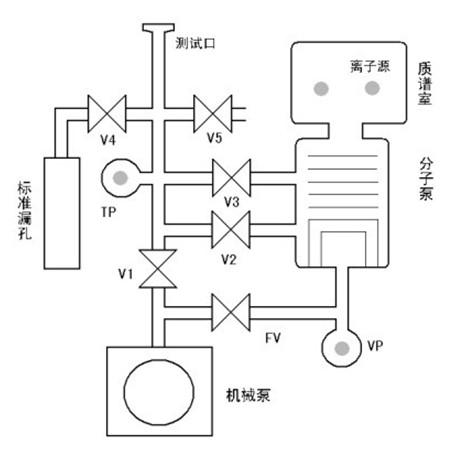

    III. Gas circuit diagram
